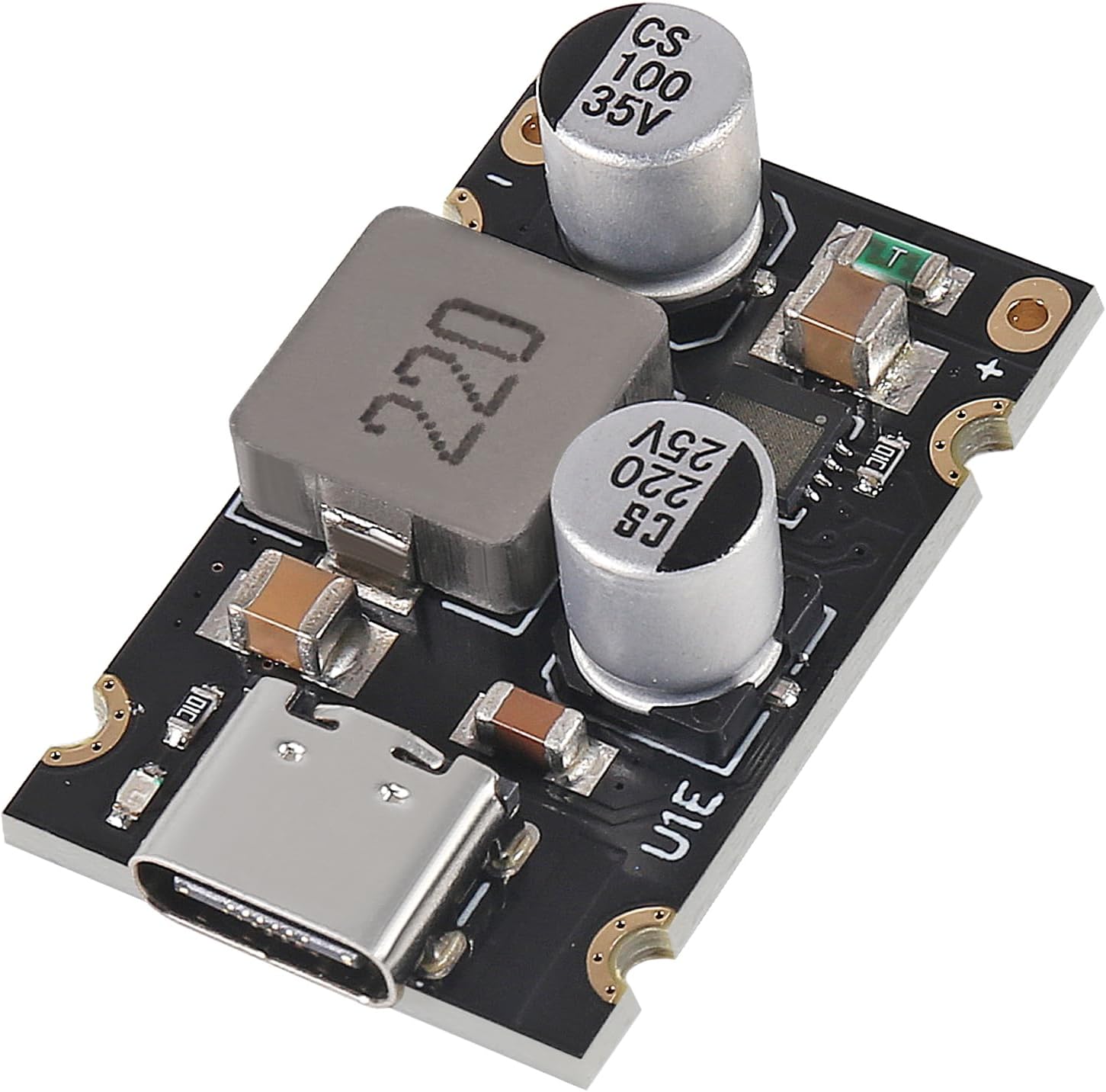

PD65W Fast Charging Module Type-C USB Interface Supports PD3.1 QC3.0 SCP PPS Fast Charger 5V 9V 12V 20V (5pcs)

Product temperature rise and output ripple:Test conditions: Input voltage 24V, ambient temperature 24 ℃, load of a laptop computer that supports PD65W (with approximately 50% battery capacity), and the computer undergoes pressure testing to ensure that the power terminal power reaches 65W.Parameters:Input voltage: DC 8-30VOutput voltage: Automatically adjust between 3.3V and 21V when connected to a compatible TYPE-C receiving device (input voltage should be higher than output voltage, and if 20V fast charging is triggered, input voltage should be higher than 20V)Output power: maximum 65w (5V3A, 9V3A, 12V3A, 20V3.25A, etc.)Maximum output: 20V 3.25AConversion efficiency: 92%~97%Output voltage ripple:<200mVNo-load current:<3mAInput overvoltage and undervoltage protectionInput overcurrent protectionOutput overcurrent short circuit protectionOverall over temperature protectionSupported charging protocols: PD3.1 (PPS), QC3.0, SCPPackage： 5 * PD 65W Fast Charging Module Type-C Interface

• Output over-current, short-circuit protection Whole machine over-temperature protection
• Output power: 65W max (5V3A, 9V3A, 12V3A, 20V3.25A, etc.)； Designed to support PD3.1, QC3.0, SCP, and PPS fast charging protocols, ensuring compatibility with a wide range of devices.
• Conversion efficiency: 92%~97%；The product features a Type-C interface, providing a universal connection for your devices
• Output voltage: automatically adjusts between 3.3V~21V when connected to TYPE-C compatible powered devices (input voltage should be higher than output voltage, if you want to trigger 20V fast charging then input voltage should be higher than 20V)
• Input voltage: DC8~32V
