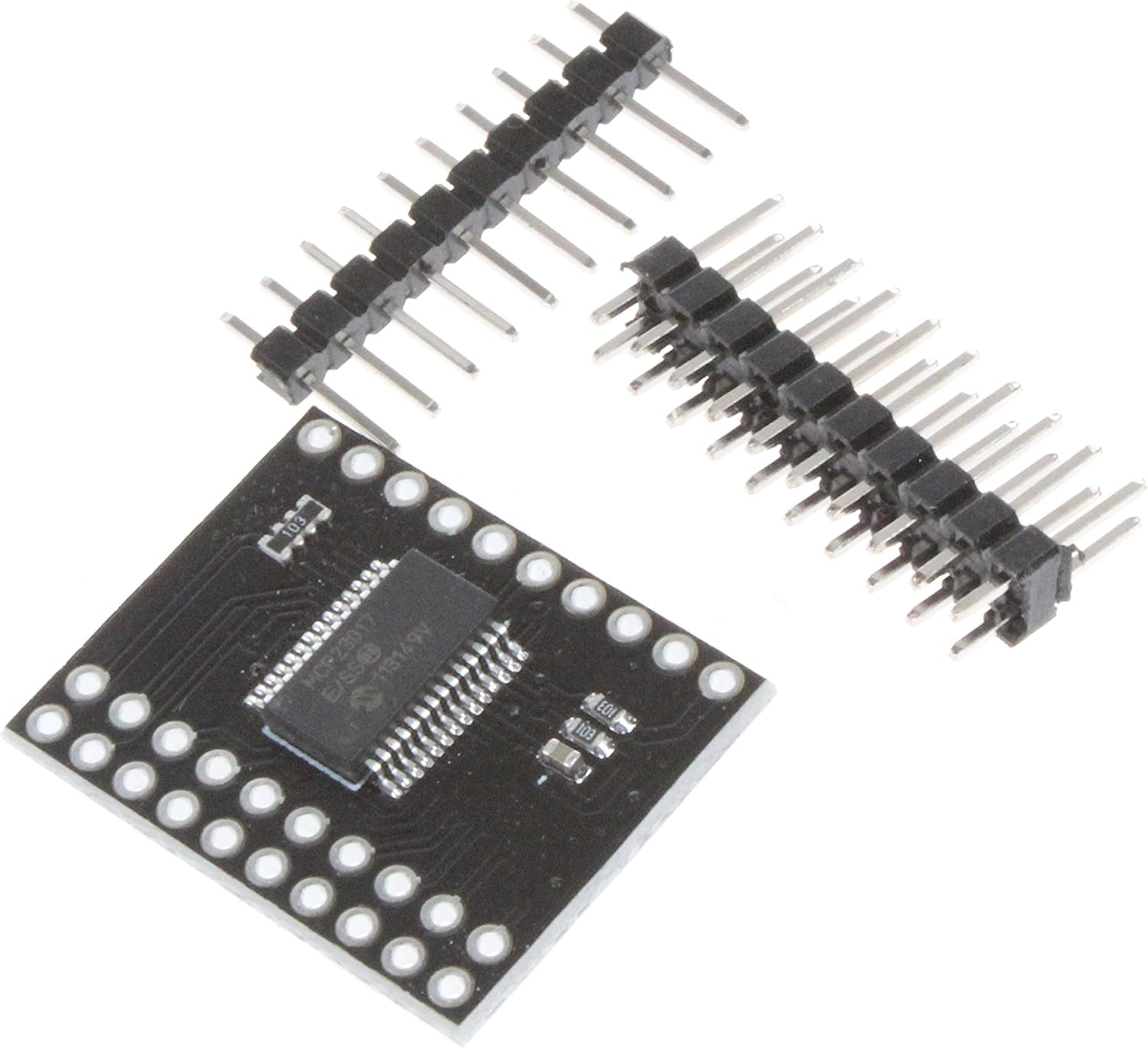

NOYITO MCP23017 Serial Interface Module IIC I2C SPI MCP23S17 Bidirectional 16-Bit I O Expander Pins 10Mhz Serial Interface Module
Product details
| Management number | 250254503 | Release Date | 2026/09/17 | List Price | US$3.60 | Model Number | 250254503 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product Description 16-Bit Remote Bidirectional I/O Port: - I/O pins default to input High-Speed I2C Interface (MCP23017): - 100kHz - 400kHz - 1.7MHz High-Speed SPI Interface (MCP23S17): - 10 MHz (maximum) Three Hardware Address Pins to Allow Up to Eight Devices On the Bus Configurable Interrupt Output Pins: - Configurable as active-high, active-low or open-drain INTA and INTB Can Be Configured to Operate Independently or Together Configurable Interrupt Source: - Interrupt-on-change from configured register defaults or pin changes Polarity Inversion Register to Configure the Polarity of the Input Port Data External Reset Input Low Standby Current: 1 μA (max.) Operating Voltage: - 1.8V to 5.5V @ -40°C to +85°C - 2.7V to 5.5V @ -40°C to +85°C - 4.5V to 5.5V @ -40°C to +125°C Package Included: 1Pcs MCP23017 Bidirectional 16-Bit I/O Expander with I2C IIC Serial Interface Module
- MCP23017 Serial Interface Module IIC I2C SPI MCP23S17 Bidirectional 16-Bit I/O Expander Pins 10Mhz Serial Interface Module
- High-Speed I2C Interface (MCP23017): - 100kHz - 400kHz - 1.7MHz
- Three Hardware Address Pins to Allow Up to Eight Devices On the Bus
- Polarity Inversion Register to Configure the Polarity of the Input Port Data
- Low Standby Current: 1 μA (max.)
| UPC | 667797752538 |
|---|---|
| ASIN | B07GDHQC36 |
| Brand | NOYITO |
| Style Name | Classic |
| Unit Count | 1 Count |
| Item Weight | 0.01 kg |
| Manufacturer | NOYITO |
| Model Number | MCP23017 |
| Mfr Part Number | MCP23017 |
| Number of Items | 1 |
| Number of Packs | 1 |
| Operating System | Windows, macOS, Linux |
| Compatible Devices | Various microcontrollers and single-board computers with I2C interfaces, such as Arduino and Raspberry Pi |
| Hardware Interface | Serial Interface |
