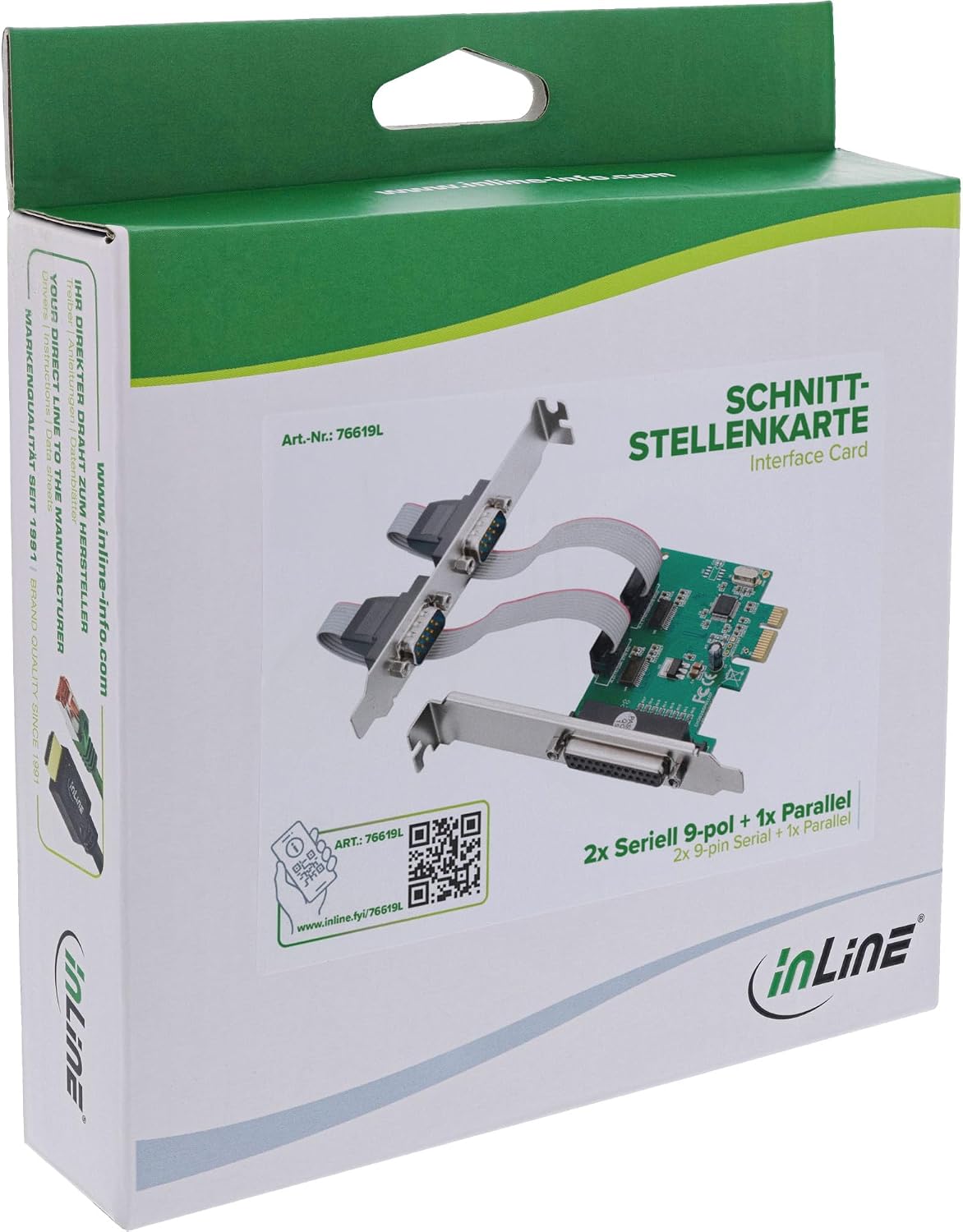

Inline Interface Card PCIe, 2X RS-232 + 1x Parallel

The InLine PCIe interface card allows the continued operation of existing devices with serial or parallel connection in compatible computer systems. It is suitable for serial controls, measurement systems, embedded hardware, POS systems and devices with parallel connection. This allows proven peripherals to be used even if a newer computer system does not directly provide the required connections. Two serial ports are available at the same time. The additional parallel connection extends the application possibilities for existing hardware. The different configuration options of serial communication facilitate adaptation to connected devices. Different operating modes of the parallel interface are also supported. Thanks to the PCIe connection, the interface card can be integrated into compatible computers. The included low-profile brackets also allow for use in appropriately designed compact housings. Technical details: PCIe standard: PCIe v1.1 x1 lane, compatible with PCIe 2.0 and above Connectors: 2x RS-232, D-Sub 9 male + 1x D-Sub 25 female Serial data rate: up to 115 kb/s per port. FIFO buffer: 256 bytes for transmit and receive data per serial port Data bits: 5, 6, 7 or 8 bit. Stop bits: 1 or 2. Parity: None, straight, odd, mark, space Parallel data rate: up to 1 MB/s Supported operating systems Windows 2000 / XP / Vista / 7 / 8 / 8.1. Windows Server 2003/2008 Windows 10 / 11 32/64 bit Linux DOS Box contents: 1 x InLine interface card, 2 x serial 9-pin + 1 x parallel. 3 x low-profile slot brackets. 1 x driver CD. 1 x user manual in German/English.

• Keep using legacy interfaces: The PCIe card adds two RS-232 serial ports and one parallel IEEE 1284 port for existing devices.
• Stable Serial Communication: The WCH CH382L controller supports 16C550, 16C552, 16C554 and 16C750 compatible UART functions as well as a FIFO buffer for transmit and receive data.
• Flexible configuration: Data bits, stop bits and parity can be adapted to different requirements. In addition, the card supports hardware and software flow control.
• Wide parallel port compatibility: The IEEE 1284 compliant interface supports SPP, PS/2, EPP and ECP and is suitable for compatible printers, controllers and other parallel devices.
• Compact: Three included low-profile brackets allow installation in appropriately designed compact systems. The PCIe x1 connection makes it easy to integrate into compatible computers.
