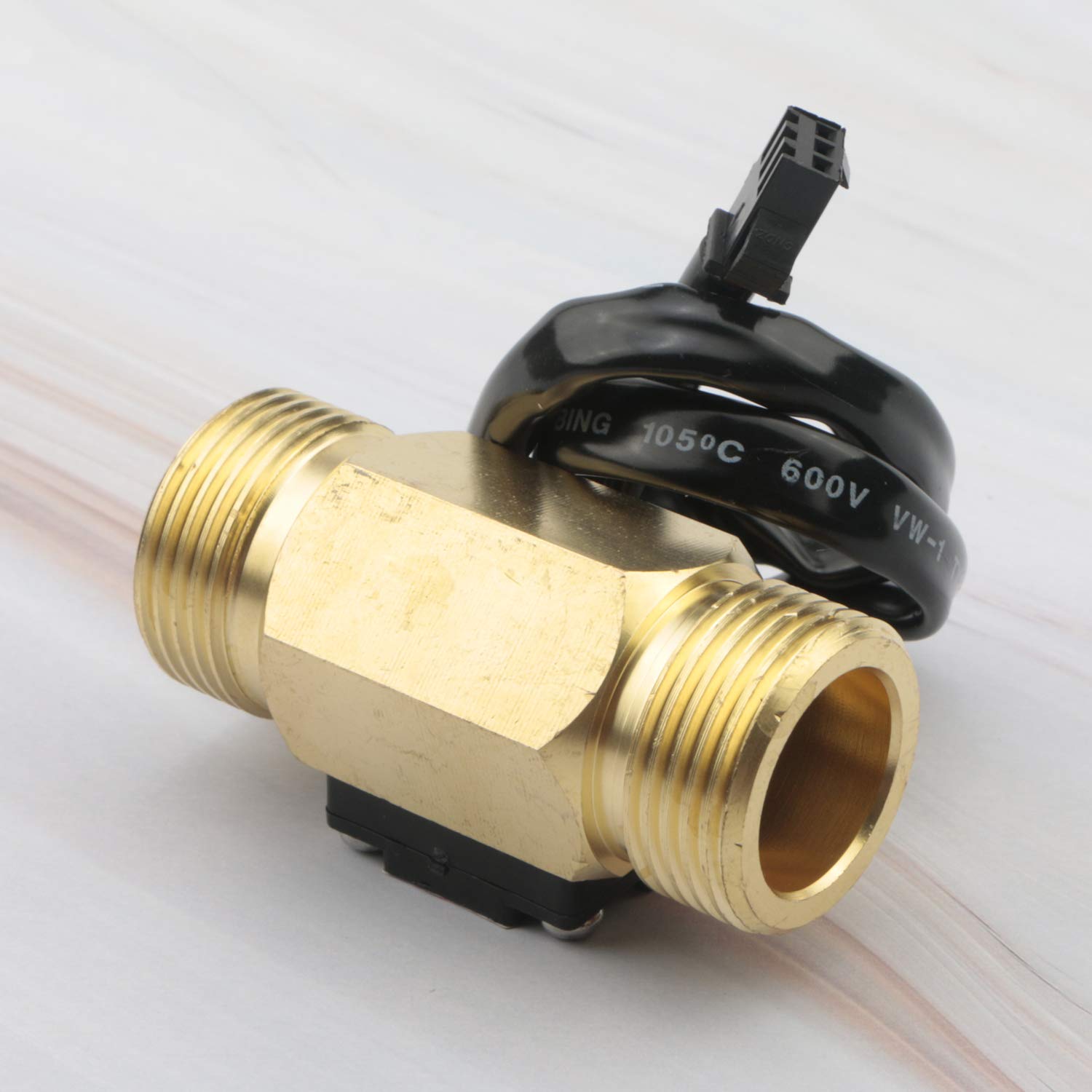

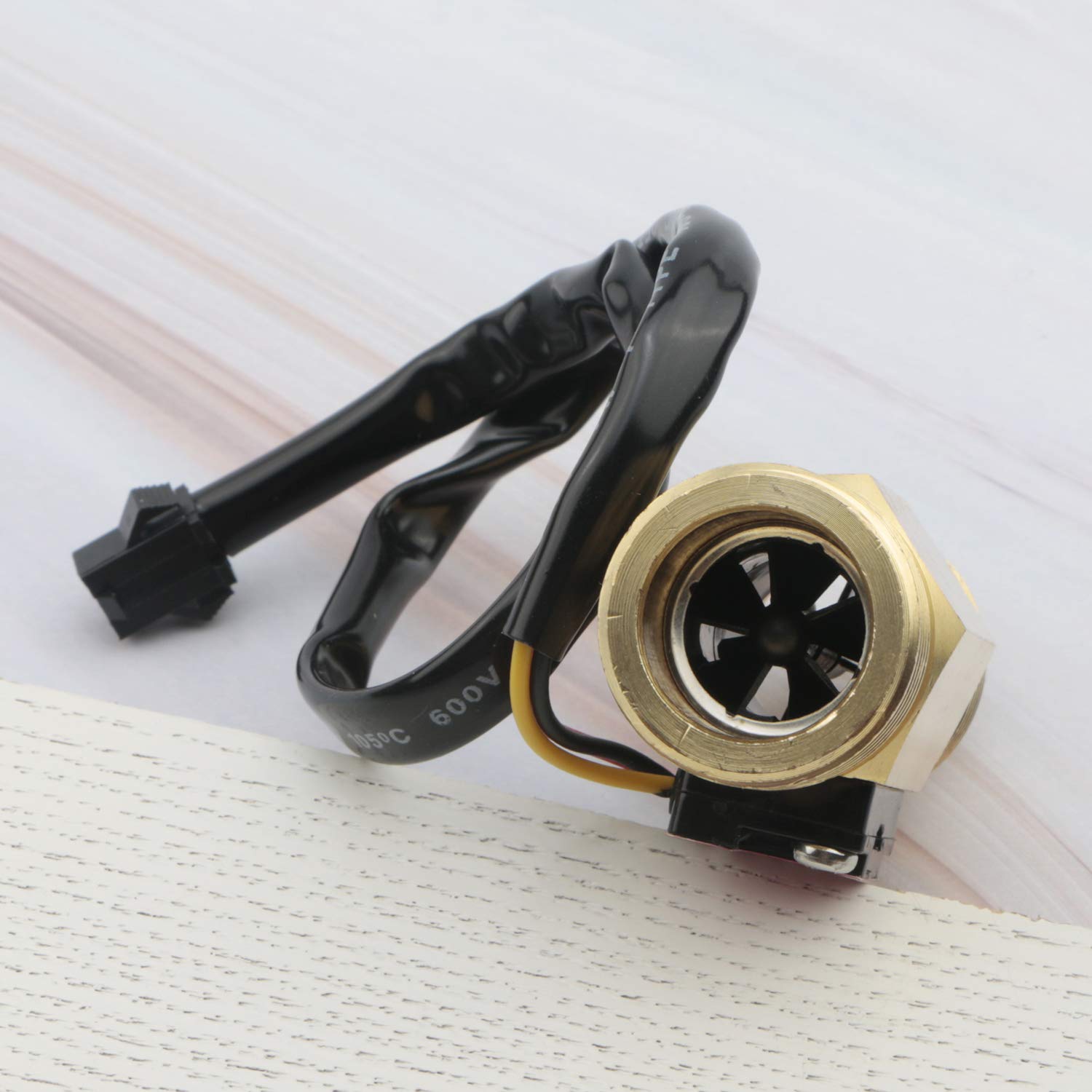

Hall Effect Liquid Water Flow Sensor, 1Pcs, G3/4", Brass

Specifications: Product Name: Water Flow Sensor Material: Brass(Shell) Size: 60mm x 30mm x 31mm(L*W*H) Liquid Temperature: Not More Than 60C External Thread Diameter: G3/4 Flow Range: 1-30L/min Working Voltage Range: DC5V Max Current: 10mA Maximum Water Pressure: 1.75MPa Connector: Male SM-3P Ingress Protection Rating: IP65 Package Included: 1 x Water Flow Sensor Note: 1. Installed in accordance with flow direction in the product, otherwise there is no signal output. 2. A filter screen must be installed at the inlet of the sensor, in order to avoid particles and debris entering the sensor.

• Features: Stable, high temperature, low water pressure start
• Material: Brass material, small size, easy to install. Hall element is imported, water-proof design to prevent water ingress, The inside of the impeller is inlaid with a stainless steel shaft and is always wear-resistant
• Flow range: 1-30L/min; Maximum water pressure: 1.75MPa; Working voltage range: DC5V; Max current: 10mA; External thread diameter: G3/4 inch
• Three wire connection: Red for positive, black for negative, yellow for pulse signal
• Wide range of applications: Can use for Water heaters; water dispensers; credit card machines; water vending machine; flow measurement device
