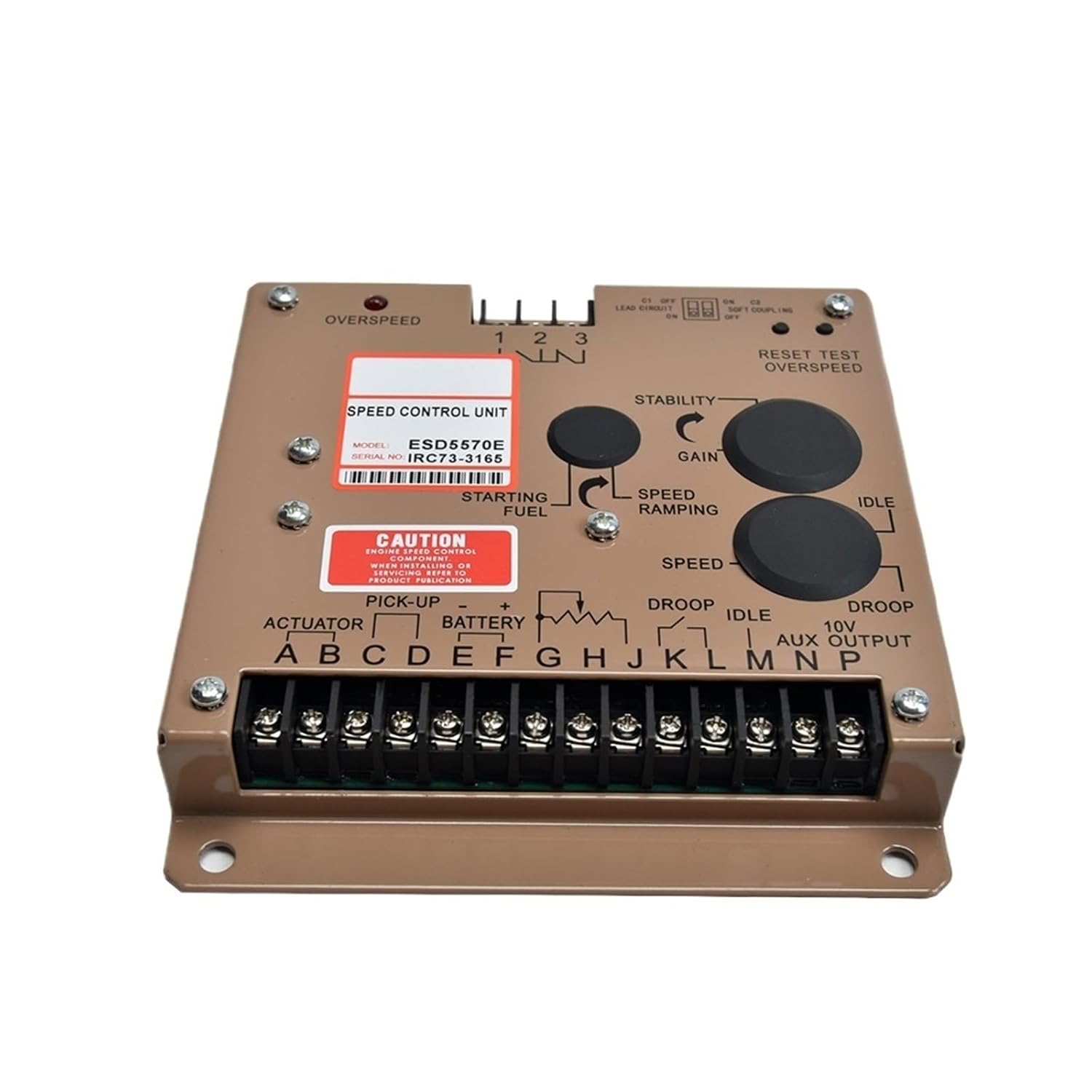

ESD5570E Electronic Engine Speed Controller Governor ESD5570E ESD5570 Genset Parts

Speed ControlESD5570InputSupply12 or 24 VDC Battery System (Transient and Reverse Voltage)PolarityNegative Ground (Case Isolated)Power Consumption50 ma continuous plus actuator currentActuator Current Range @77°F (25 °C) - (Inductive Load)Min.2.5 Amps; Max. 10Amps continuousSpeed Sensor Signal0.5-120 Volts RMSSpeed switch Relay contacts(N.O.and N.C)10 AmpsPerformanceIsochronous Operation/Steady State Stability±0.25% or betterSpeed Range/Governor1K to 7.5K Hz continuousSpeed Drift with Temperature±1% MaxIdle Adjust CW60% of set speedIdle Adjust CCWLess than 1200 Hz.Droop Range1-5% regulationDroop Adj. Max. (K-L Jumpered)400 Hz., ±75Hz. Per 1.0A changeDroop Adj. Min. (K-L Jumpered)15Hz., ±6Hz. Per 1.0A changeSpeed Trim Range±200 HzRemote Variable Speed Range500 - 7.5 Hz. Or any part there of Terminal SensitivityTerminal Sensitivity J100 Hz., ± 15Hz / Volt @ 5.0 K ImpedanceTerminal Sensitivity L735 Hz., ±60 Hz / Volt @ 65 K ImpedanceTerminal Sensitivity N148 Hz., ±10 Hz / Volt @ 1 Meg. ImpedanceTerminal Sensitivity P10 VDC Supply @ 20 ma MaxSpeed witch adjustment range1000-10000HZEnvironmentalAmbient Operating Temperature Range-40 to +180°F(-40°+85 °C)Relative HumidityUp to 95%All Surface FinishesFungus Proof and Corrosion ResitantReliabilityVibration1G @ 20 to 100 Hz.Testing Functionally TestedphysicalDimensionsSee outline (FIGURE 1)Weigh11.8 lbs.(820 grams)MountingAny position, Vertical Preferred
