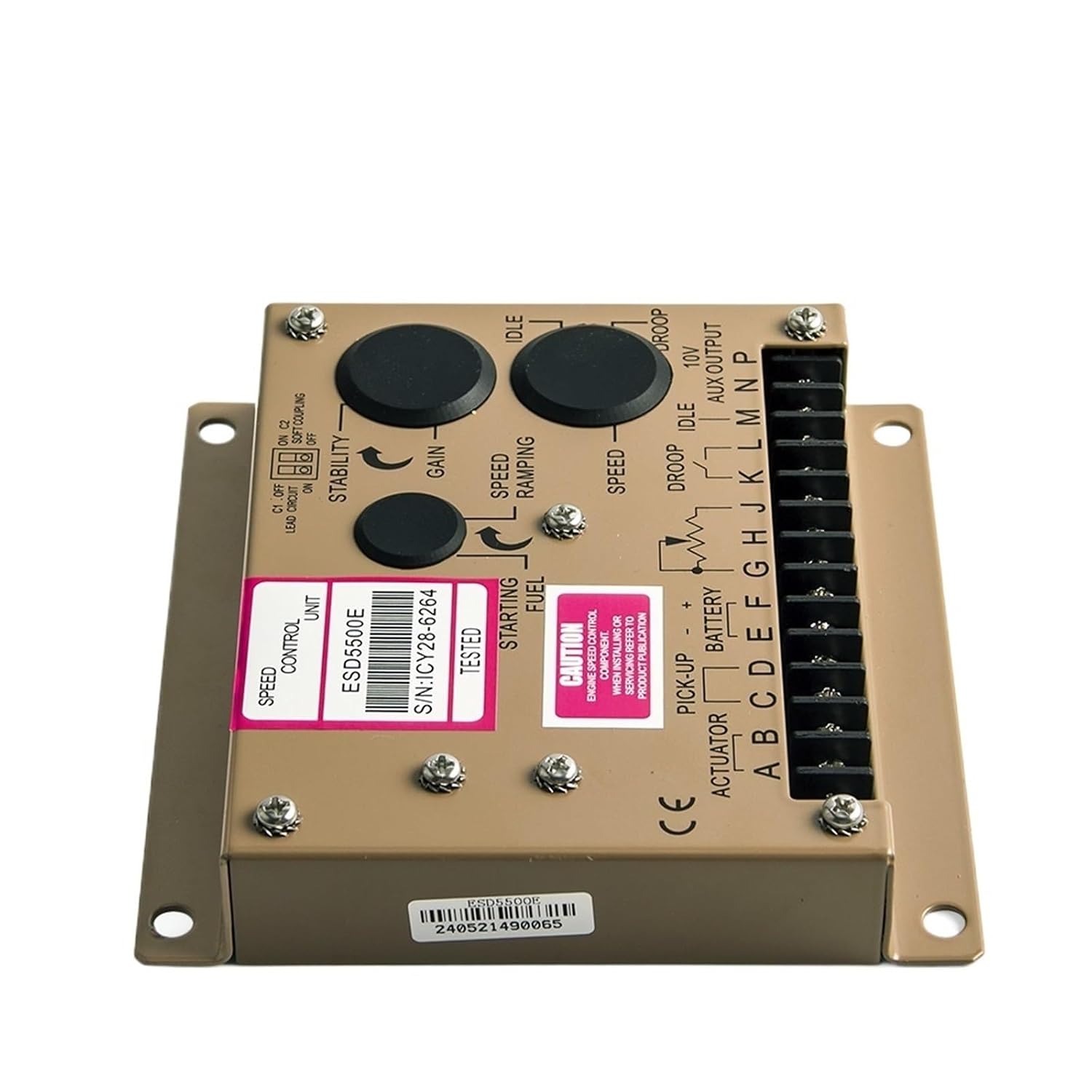

ESD5500E Diesel Generator Engine Speed Controller Module Electric Governor Speed Control Unit ESD-5500E

Speed ControlESD5500E Generator Speed Controller Module 5500E Electric Speed Governor speed control unit ESD5500Eesd5500e diesel generator speed governor controller Description----The ESD5500E/5520ESeries speed control unit is an all electronic device designed to control engine speed with fast and precise response transient load changes.*ESD5520E is designed for EFC series.*Isochronous Operation/Steady Stability---- +/-0.25% or better*Supply----12 or 24 VDC Battery Systems(transient&reverse voltage protectedPower Consumption----50 ma continuous plus acutator current*Maximum Actuator Current at 25celsius (77celsius F)----10 Amps continuousInput Supply 12 or 24 VDC Battery System (Transient and Reverse Voltage)Polarity Negative Ground (Case Isolated)Power Consumption 50 ma continuous plus actuator currentActuator Current Range @ 25Deg. C - (Inductive Load) Min.2.5 Amps; Max. 10Amps continuousSpeed Sensor Signal 0.5-120 Volts RMSPerformance Isochronous Operation/SteadyState Stability ±0.25% or betterSpeed Range/Governor 1K to 7.5K Hz continuousSpeed Drift with Temperature ±1 MaxIdle Adjust CW 60% of set speedIdle Adjust CCW Less than 1200 Hz.Droop Range 1-5% regulationDroop Adj. Max. (K-L Jumpered) 400 Hz., ±75Hz. Per 1.0A changeDroop Adj. Min. (K-L Jumpered) 15Hz., ±6Hz. Per 1.0A changeSpeed Trim Range ±200 HzRemote Variable Speed Range 500 - 7.5 Hz. Or any part there ofTerminal Sensitivity J 100 Hz., ± 15Hz / Volt @ 5.0 K ImpedanceTerminal Sensitivity L 735 Hz., ±60 Hz / Volt @ 65 K ImpedanceTerminal Sensitivity N 148 Hz., ±10 Hz / Volt @ 1 Meg. ImpedanceTerminal Sensitivity P 10 VDC Supply @ 20 ma MaxEnvironmental Ambient Operating TemperatureRange -40 to +85 Deg. CRelative Humidity Up to 95%All Surface Finishes Fungus Proof and Corrosion ResitantReliability Vibration 1G at 20 to 100 Hz.Testing Functionally TestedPhysical Dimensions See outline (FIGURE 1)Weigh1 1.2 lbs.(545 grams)Mounting Any position, Vertical Preferred
