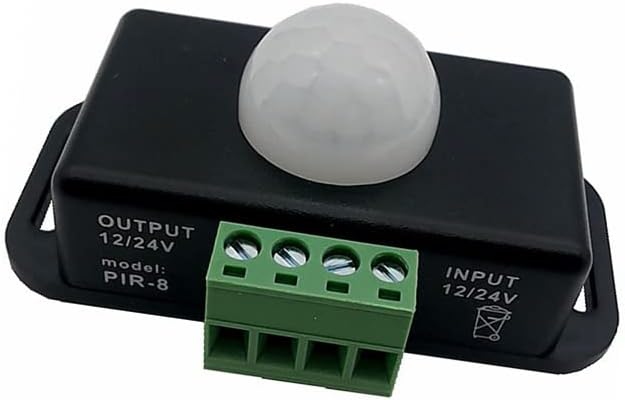

DC 12V 24V PIR Motion Sensor Switch for LED Strip Lights Auto Detection

Micro SwitchesItem Description: Type: PIR Switch Easy to install and use, with soft and stable light adjusted to be flicker-free Mainly used for controlling LED light lamps and LED strips Conveniently allows automatic on/off of lights The switch can detect human body movement and control the load Users can install the human body sensor in an appropriate environment based on actual needs Application: Incandescent lamps, energy-saving lamps, LED lamps, fluorescent lamps, and various other loads Technical Parameters: Operating temperature: -20 to +60°C Input voltage: 10.5-16V or 21-32V Output voltage: 10.5-16V or 21-32V Induction distance: 8M Induction angle: 60 degrees Output current: ≤6A Delay time: 1 to 10 minutes (adjustable) Dimensions: 76 * 45 * 32mm Usage: The human body induction switch uses detection control indicators and adopts a detection method to control the load switch. Users should install the human body sensor in an appropriate environment based on actual needs. Connect the load wires first, followed by the power wires. Before turning on the power, ensure there is no short circuit between the connected wires. When a person is detected, the load light will turn on. After the person leaves, the load light will automatically turn off according to the set delay time. Correctly connect the controller's signal output line and input line. Package: 1 pc LED RGB Strip Sensor Switch Product Specifications: Current: 1A Function: RGB Motion Sensor Switch Material: Plastic Item Type: Switch Warranty: 1 Year Smart Device: No Switch Type:
