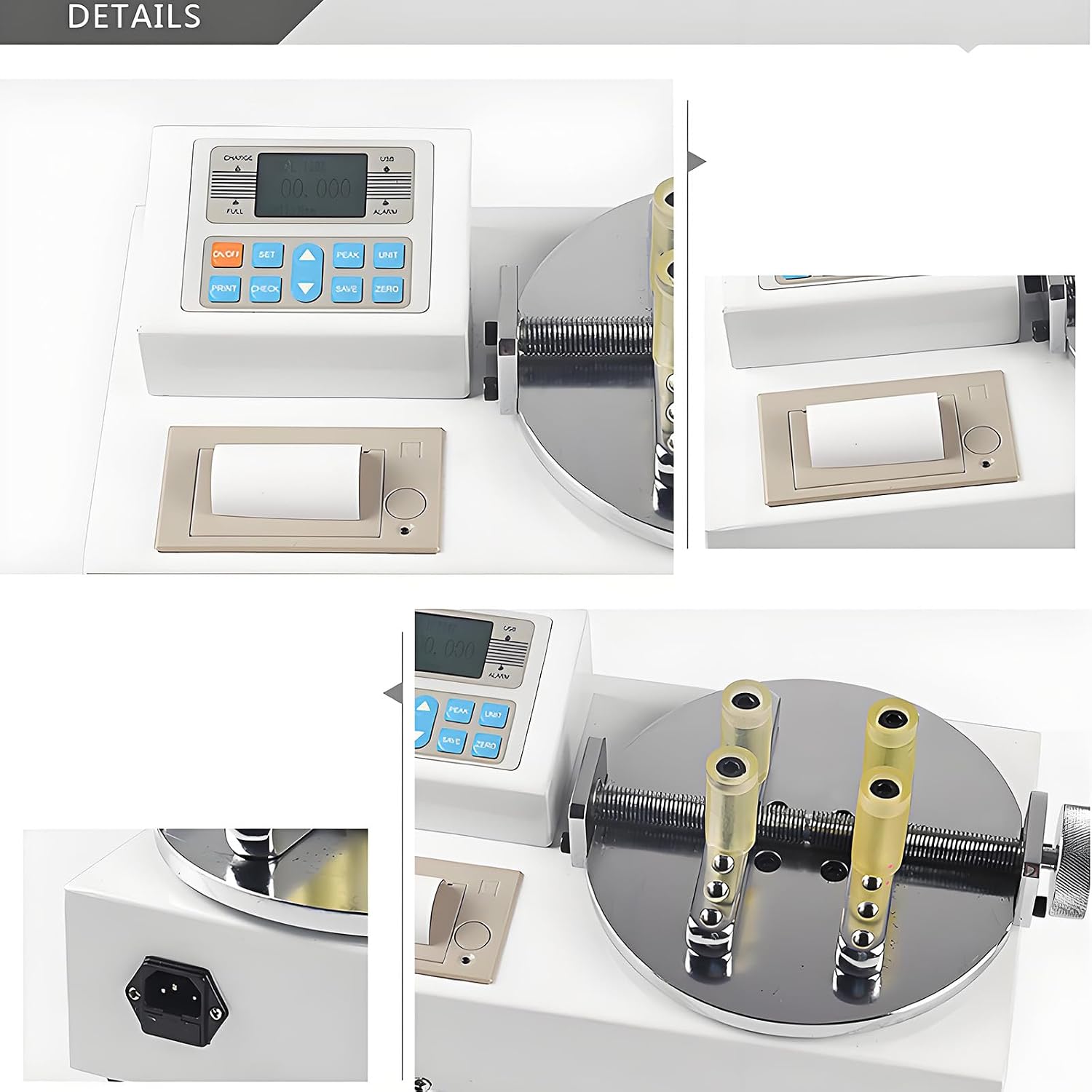

Bottle Lid Torque Meter- Professional Bottle Cap Torque Analyzer with Print & Data Export Function, 17.7 Lb·in Capacity

Digital bottle lid torque meter is an intelligent multi-functional measuring instrument which is designed for testing various kinds of bottle lid torque. It main used in testing and calibrating tighten force, parts torsional destructive testing, etc. With features of simple operation, high precision, easy to carry, complete functions etc. It is widely used in various kinds of electric, light industry, machinery manufacturing, research institutions, etc. Specifications Model: ANL-P2 Measuring range: 2.0000N·m/ 20.400Kg·cm/ 17.700Lb·in Division value: 0.0001N·m/ 0.001Kg·cm/ 0.001Lb·in Precision: ±1% Peak Value Sampling Frequency: 2000HZs Hold diameter: 9mm-165mm Size: 400mm×200mm×200mm Net Weight: 12KG Power adapter: Input：AC 110V 60HZ Output：DC 10V 300mA Packing list 1 x Bottle lid torque meter 4 x Footing 4 x Special fixture 1 x M6 inner-hexagon spanner 1 x M8 inner-hexagon spanner 1 x Straight join line 1 x Mating Software CDS 1 x Manual 1 x Product inspection certificate 1 x Product warranty card

• Measuring range / Division value: 17.700/0.001 Lb·in
• Adopting high precision torque sensor, with torque direction display
• Upper and lower limit value setting, red and green indicating lights and buzzer audible and visual alarm
• Three units can be switched each other (N·m、Kgf·cm、Lb·in)
• Real-time, peak, automatic peak three models of optional switch
• Use USB interface and PC communications, synchronous test function can connect to the computer, computer synchronous display
• Test force graph and the detailed test process, can save, print, doing all sorts of analysis
• Peak holding, remove automatically function, remove time to set freely
• Large storage, can save 99 groups of test data
