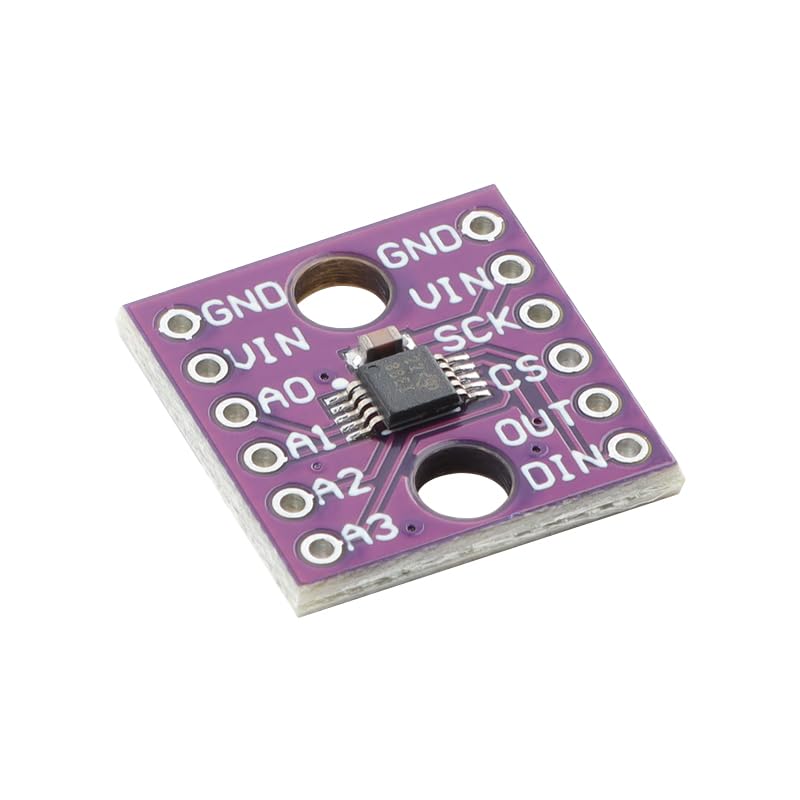

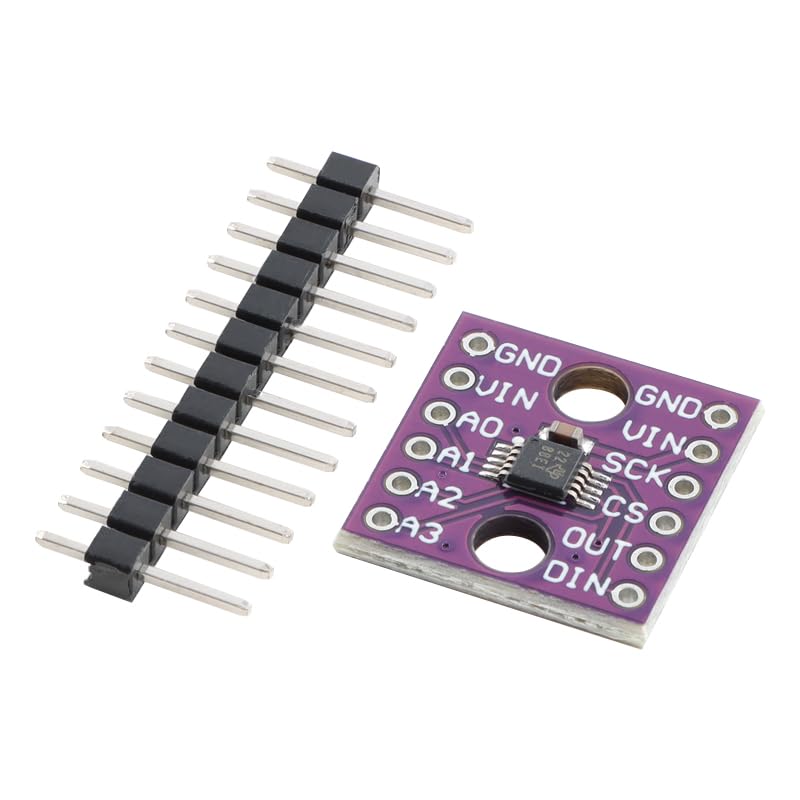

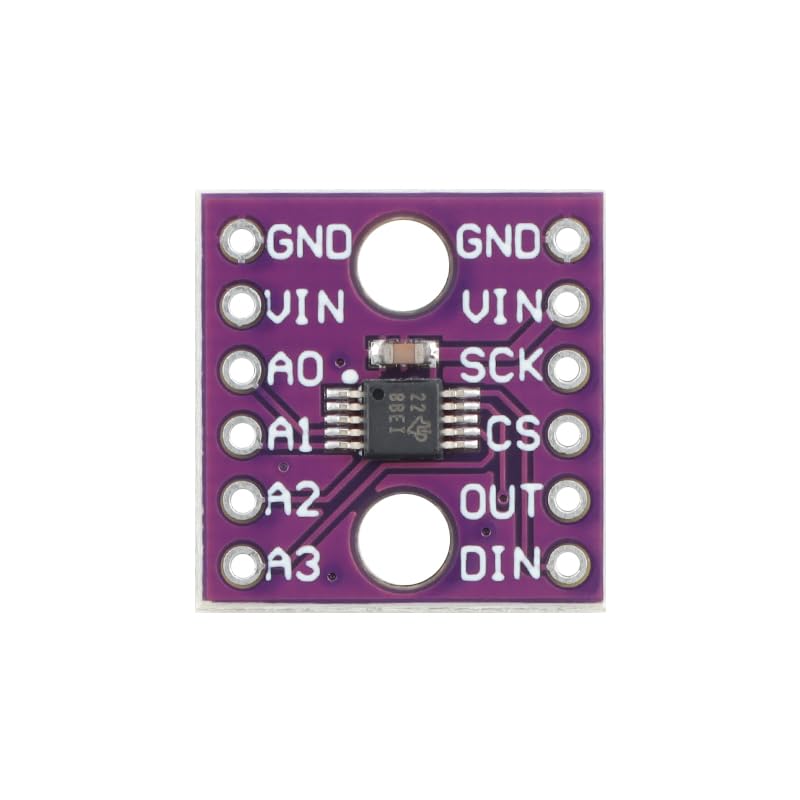

ADS1118 16-bit ADC SPI Module with Internal Reference and Temperature Sensor
US$3.60
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by chennaitimepass.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$3.60
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by chennaitimepass.com
Free 30-day returns Details
Product details
| Management number | 250266720 | Release Date | 2026/09/17 | List Price | US$3.60 | Model Number | 250266720 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【High-Precision 16-Bit ADC with SPI Interface】 16-bit resolution; ±0.0015% non-linear error; 4 single-ended or 2 differential input channels; SPI communication up to 25MHz; Suitable for battery-powered sensor systems and industrial metering applications.
- 【Wide Voltage Range and Integrated Reference】 4.5V to 36V DC input; on-board LDO regulates to 3.3V or 5V; internal reference voltage source ±0.05% accuracy; supports ±0.256V to ±6.144V measurement range with programmable gain amplifier.
- 【Low Power Consumption for Energy-Efficient Systems】 150µA operating current at 3.3V; 0.5µA standby mode; suitable for portable devices and low-power data acquisition setups; compatible with for Arduino and for Raspberry Pi platforms.
- 【Robust Anti-Interference Design for Stable Performance】 Analog input lines isolated from SPI signals; ground wire shielding; 104 capacitor filtering for high-noise Settings; ensures stable signal acquisition in industrial and embedded systems.
- 【Easy Configuration with Clear Documentation and Calibration Support】 SPI interface with 16-bit configuration word; built-in temperature sensor ±1°C accuracy; calibration instructions included; supports single-shot and continuous conversion modes for flexible use.
| ASIN | B0FR8W8B8B |
|---|---|
| Model | ADS1118 |
| Brand Name | MusRock |
| Style Name | Industrial |
| Unit Count | 1 Count |
| Output Type | Digital |
| Part Number | Module Board Sensor |
| Manufacturer | MusRock |
| Measuring Range | ±0.256V - ±6.144V |
| Number of Items | 1 |
| Included Components | User Manual |
| Measurement Accuracy | ±0.0015% |
| Maximum Supply Voltage | 36 volts_of_direct_current |
| Upper Temperature Rating | 125 °C |
